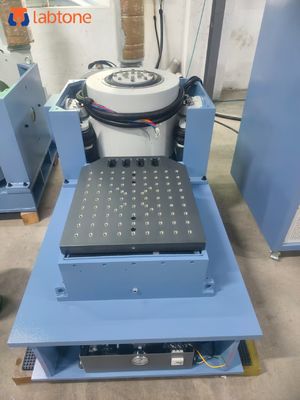

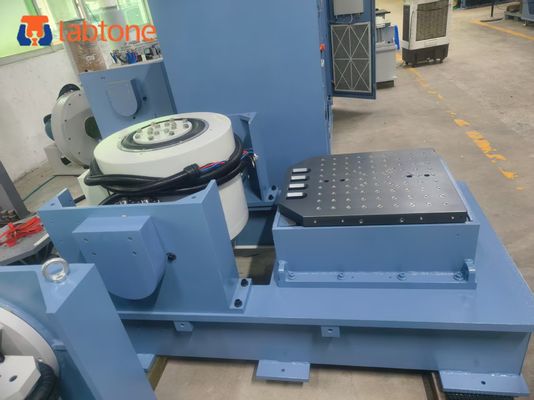

Electrodynamic Vibration Shaker System with Head Expander and Horizontal Slip Table for Laboratory Testing and Research

Dynamic Shaker Laboratory Apparatus with Head Expander and Horizontal Slip Table

Introduction

EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.

A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.

Specifications: EV203-EV220

Applicable Industries:

• Automotive;
• Electronics;
• Aviation,;
• Large Ships;
• Military Industry;
• Rail Transit;
• Potoelectronics;
• Testing Laboratories.

Features:

• l Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
• l Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
• l High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
• l Quick self-diagnosis with safety interlock, high safety reliability.
• l Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance.
• l Horizontal and vertical expansion platforms for different applications.
• l Simple controller operation.

Working Principle:

Services:


Presales:

• Technical consultation: test method, laboratory planning and suggestion.
• Equipment selection: selection scheme, FAQ.
• Product testing scheme.

In-Sales:

• Customer communication and progress report.
• Guidance for pre-installation preparation, equipment commissioning and test run
• Calibration (when Third Party’s verification is required)

After-Sales:

• One year limited warranty with lifetime support; extended warranty available upon request at additional cost.
• On site installation and trainning are avaiable at extra cost.
• Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
• Technical support: special paid services are provided according to customer’s needs.
